# Nothing appears on car screen

{% hint style="warning" %}
**If you encounter the following issues, please refer to this page:**

AutoPro X won’t start, the initial screen doesn’t appear, or there’s just a black screen. AutoPro X doesn’t launch, and a “USB device not supported” message pops up, or there’s no response—nothing happens. AutoPro X doesn’t display, shows “Cannot connect now,” or it freezes.
{% endhint %}

{% embed url="<https://www.youtube.com/@auto_pro_x>" %}

### **Here's the video guide.**

{% embed url="<https://youtu.be/i0t1cgmgPUg?si=-DsytX6DKeA30tHR>" %}

## **1. Solution**

### **1-1.** USB port connection

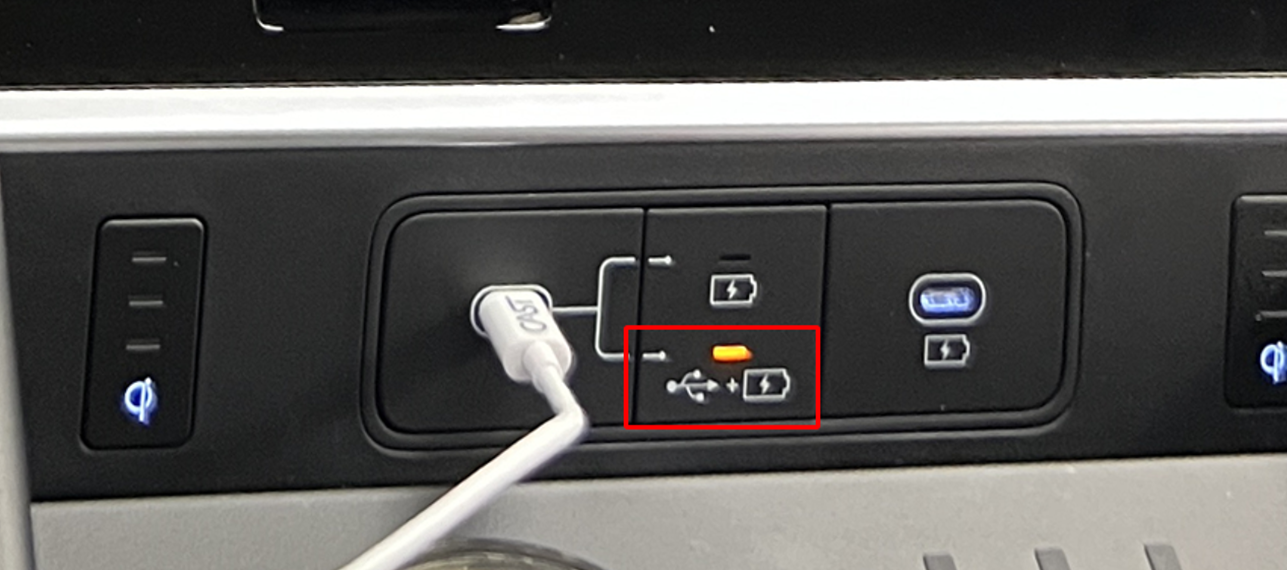

Ensure the cable is connected to a <mark style="background-color:orange;">**data-only**</mark> USB port.

<figure><img src="/files/LKRJifcfXREyP6sRmQT7" alt=""><figcaption></figcaption></figure>

### 1-2. **Check if your car has android auto.**

If you don’t have Android Auto built into your car, AutoPro X isn’t compatible. Please confirm whether your car has Android Auto first.

### 1-3. **Please turn on Android Auto in your car's settings**

In some cases, users may have turned off the Android Auto settings inside the car. Please check if Android Auto is turned on in your car.

<figure><img src="/files/LcjHxIZgkY5ojvVPbQx5" alt=""><figcaption></figcaption></figure>

### 1-4. **Please update the firmware to the latest version**

{% hint style="success" %} <mark style="color:green;">You can download the latest AutoPro X app through</mark> [<mark style="color:blue;">**this link >**</mark>](https://play.google.com/store/apps/details?id=com.zjinnova.smarthub\&hl=en_US)&#x20;
{% endhint %}

Be sure to update the firmware to the latest version. Please refer to the[ guide video >](#heres-the-video-guide)

### 1-5. **Please try GM mode if you have GM or Honda cars.**

For GM and Honda cars, you need to switch to GM mode inside the AutoPro X app. Here’s the app link. You can turn on GM mode in the app by first tapping the gear icon in the top right corner, then selecting “Specific Device Configuration,” and enabling GM mode.

<mark style="color:blue;">**STEP01**</mark> Connect AutoPro X to the app. (Grant all permissions)

<figure><img src="/files/kYf8bVj2TZdqR7IIfZbV" alt="" width="375"><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP02**</mark> Tap the gear icon in the top-right corner.

<figure><img src="/files/InWZ1fw0vZCtqKssrHW1" alt="" width="375"><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP03**</mark> Choose Specific Device Config and turn GM mode on.

<figure><img src="/files/lTvfC2bbn2Wu0DwIAfpB" alt="" width="375"><figcaption></figcaption></figure>

### 1-6. **Please use our cable which was included with our dongle.**

Our cable is specifically designed for AutoPro X. If you used another brand’s cable, it might be causing the issue.

**Please try USB cable.**

We’ve encountered some issues with C-to-C cables. If your car has a C port, the cable might be causing errors. Please try an A-to-C cable or a Samsung-provided cable instead.

### 1-7. **If you have a Toyota or Lexus released before 2023, Please use black cable**

you’ll need to use the black cable that comes with the dongle. Please connect it and plug into both the charging and USB ports.

If none of the above options are helpful, please revert to the previous version.

## **2.** How to Recover Firmware (Galaxy)

### 2-1. Wi-Fi connection

※ AutoPro X must be connected to the vehicle through the cable.

<mark style="color:blue;">**STEP01**</mark> Disable Bluetooth

<figure><img src="/files/kimBSOOXkZYHmqn06jl7" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP02**</mark> Settings ▶ Connections ▶ Wi-Fi ▶

<figure><img src="/files/YhqfWHT1WG0WbUJcnJZt" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/I7luzckHeSl3Pces3CKI" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP03**</mark> Wi-Fi Settings ▶ Select AutoProX-xxxx ▶ Password: qwerfdsa

<figure><img src="/files/KUbYXM2ilZJ4HiLJYF2G" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/fx1LVyclkQUZh21pW6Cs" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP04**</mark> Internet Connection Popup ▶ Connect This Time Only

<figure><img src="/files/RElHznmv7xNsVkenToig" alt=""><figcaption></figcaption></figure>

### 2-2. Access the website

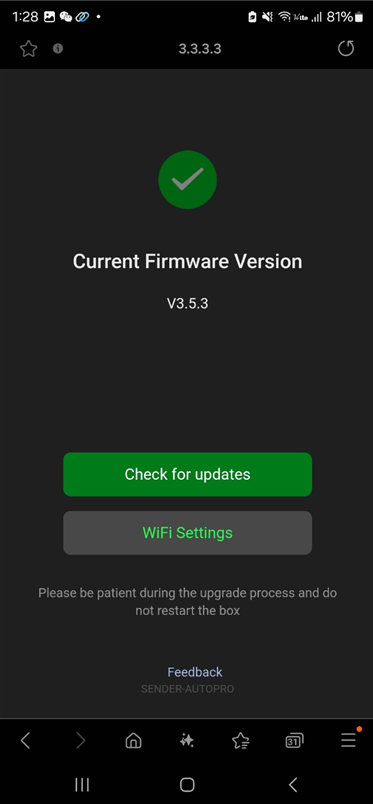

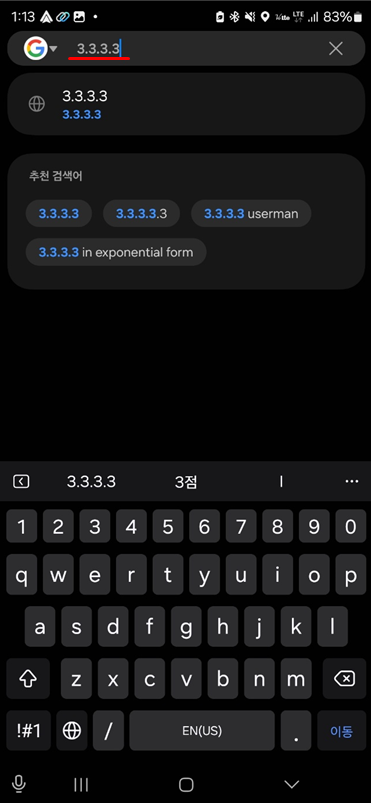

<mark style="color:blue;">**STEP**</mark> Open an internet browser (Samsung Internet, Chrome, etc.) ▶ Address bar ▶ Enter 3.3.3.3 ▶ Go

<figure><img src="/files/p8ThlNx8lrEvGljib8hc" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/uAMFrJNAAAvGzJFl3ejC" alt=""><figcaption></figcaption></figure>

### 2-3. Per-App Network Settings

<mark style="color:blue;">**STEP01**</mark> Settings ▶ Connections ▶ Data Usage

<figure><img src="/files/YhqfWHT1WG0WbUJcnJZt" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/PzvbmrmNKs2PzKzWoINK" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP02**</mark>  Data Usage ▶Allowed networks for apps

<figure><img src="/files/QeZUYxz5qECv6sOeyjQs" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP03**</mark> Select the internet browser (used in step 2-2 for site access) ▶ Use Mobile Data Only

<figure><img src="/files/wluDZueVv2n1bp1bbbxg" alt=""><figcaption></figcaption></figure>

### 2-4. Update

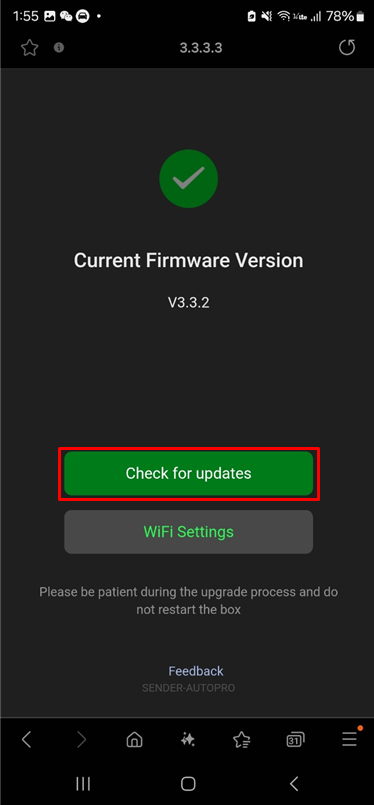

<mark style="color:blue;">**STEP01**</mark> App Switch Button ▶ Select the Internet Browser (used in step 2-2 for site access) ▶ Check for updates

<figure><img src="/files/7shUpsaT0mYMvmMiTp1L" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/2dJTUIKneylgk5xH5BLn" alt=""><figcaption></figcaption></figure>

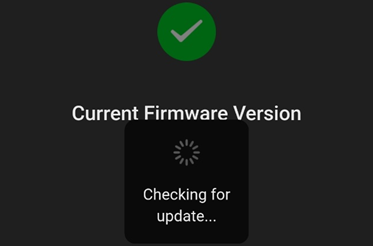

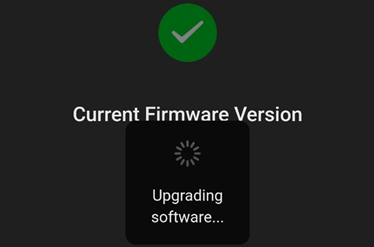

<mark style="color:blue;">**STEP02**</mark> As soon as 'Checking for update…' changes to 'Upgrading software…,' proceed to the next step

<figure><img src="/files/Q9HrFe3szr0u2vaQR66k" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/BkltkVuUx1YH1hNDb8ts" alt=""><figcaption></figcaption></figure>

### 2-5. Restore Per-App Network Settings

<mark style="color:blue;">**STEP02**</mark> App Switch Button ▶ Settings

<figure><img src="/files/BOybz7InluXqg1QynQl1" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP02**</mark> Allowed networks for apps ▶ Select the Internet Browser (used in step 2-2 for site access) ▶ Choose Mobile Data or Wi-Fi

<figure><img src="/files/WQZ0sH0G42CGjV0kVRYl" alt=""><figcaption></figcaption></figure>

### 2-6. Restart

<mark style="color:blue;">**STEP**</mark> Internet Browser (used in step 2-2 for site access) ▶ Displays the following message

Wait **until the vehicle boots (restarts) normally.**

<figure><img src="/files/bgU14Zfzjq9svMqMSZaM" alt=""><figcaption></figcaption></figure>

**※** Once the restart is complete, the Wi-Fi name and software version will appear on the vehicle's screen.\ <mark style="color:red;">**Do not disconnect the cable or turn off data and power until the device has restarted and the update version appears correctly on the initial screen.**</mark>

If the update <mark style="color:red;">**fails**</mark>, an update failure message will be displayed. *(<mark style="color:green;">However, if the latest version number (vX.X.X) is displayed on the vehicle's screen, the update has been successful, even if an update failure message appears.</mark>)*

## **3.** How to Recover Firmware (iPhone)

### 3-1. Wi-Fi Connection

※ AutoPro X must be connected to the vehicle.

<mark style="color:blue;">**STEP01**</mark> Settings ▶ Wi-Fi ▶ Connect to AutoProX-xxxx (Password: qwerfdsa)

<figure><img src="/files/L0ORR7ejeZbQvMmC0yKk" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/ozDE0Mbum3yFy84symHf" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/TEuktuJiQybBQhuYayJT" alt=""><figcaption></figcaption></figure>

### 3-2. Access the website and update

<mark style="color:blue;">**STEP01**</mark> Internet browser (Safari or Chrome) ▶ Enter 3.3.3.3 in the address bar ▶ Select "Check for updates"

<figure><img src="/files/vhxnJObJemVV3J3hitDt" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP02**</mark> Web browser ▶ Popup message after a certain time ▶ Use Cellular Data

<figure><img src="/files/KYnu7aZguHiZZOB7Y2Kj" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**STEP03**</mark> Web browser ▶ Done

You must keep the website and the device powered on until the reboot is complete. Once the restart is finished, the updated firmware version will appear on the vehicle's screen.\ <mark style="color:red;">**Do not disconnect the cable or turn off cellular/wi-fi and power until the device has restarted and the update version appears correctly on the initial screen.**</mark>

If the update <mark style="color:red;">**fails**</mark>, an update failure message will be displayed. *(<mark style="color:green;">However, if the latest version number (vX.X.X) is displayed on the vehicle's screen, the update has been successful, even if an update failure message appears.</mark>)*

<figure><img src="/files/Sd5VvxQIkAAvRpaLSMrw" alt=""><figcaption></figcaption></figure>


---
