# How to Connect Android Auto

{% hint style="info" %}
**Before You Start**

AutoPro X allows users to choose between AutoPro X (DeX) and wireless Android Auto functions.

Below is the method for selecting and using the wireless Android Auto feature.
{% endhint %}

1. [How to connect to Wireless Android Auto](#id-1.-how-to-connect-to-wireless-android-auto)
2. [How to disconnect](#id-2.-exit)

{% embed url="<https://youtu.be/CMk6iAiCu1w?si=7oUPO5u2yj7ks9cL>" %}

## **1.** How to connect to Wireless Android Auto

### **1-1.** Cable Connection

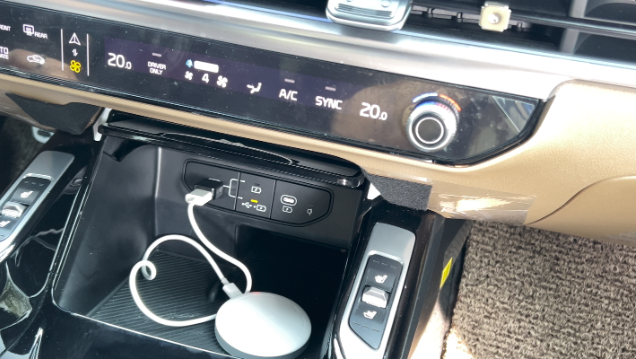

Connect AutoPro X to the vehicle's data port.

<figure><img src="https://content.gitbook.com/content/ltj4dqei7bYdDyXBzPEs/blobs/Hwf4SFsVXYO9tHrtWRLW/device%20connect%20car.png" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
Ensure that the LED on the AutoPro X device is lit:

* <mark style="color:red;">Red LED</mark>: Booting (starting)
* <mark style="color:blue;">Blue LED</mark>: Android Auto connection
* <mark style="color:green;">Green LED</mark>: X mode (DeX) connection
  {% endhint %}

### **1-2.** Select Android Auto

On the AutoPro X initial screen displayed on the vehicle, select Android Auto (on the left).

<figure><img src="https://576902132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fltj4dqei7bYdDyXBzPEs%2Fuploads%2FO0xTEuaz44ncLqUd5jGR%2Fapx_home_aa.jpg?alt=media&#x26;token=a05441ef-12f9-40a3-a5e9-08b15ef5a226" alt=""><figcaption></figcaption></figure>

### **1-3.** Bluetooth Connection

First, activate <mark style="color:red;">**Wi-Fi**</mark> <mark style="color:red;"></mark><mark style="color:red;">and</mark> <mark style="color:red;"></mark><mark style="color:red;">**Bluetooth**</mark> <mark style="color:red;"></mark><mark style="color:red;">on your smartphone</mark>. In Bluetooth settings, select AutoProX-XXXX to connect. Once Bluetooth is connected, Wi-Fi will connect automatically. **Do not disable Wi-Fi.**

<figure><img src="https://576902132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fltj4dqei7bYdDyXBzPEs%2Fuploads%2FgBkHjzH7rm6ffHNFUYwJ%2Fphone_bt_mark%20apx.jpg?alt=media&#x26;token=8f29367e-31e3-4a7e-b1bd-164b274bc064" alt=""><figcaption></figcaption></figure>

### 1-4. Connection Video

{% embed url="<https://youtu.be/CMk6iAiCu1w?si=HTk3XDHmnv07d-o>\_" %}

## 2. Exit

<mark style="color:blue;">**STEP01**</mark> Tap Apps in the bottom left corner.

<figure><img src="https://576902132-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fltj4dqei7bYdDyXBzPEs%2Fuploads%2F1RX9bnvgJLm3V6oufRm0%2Fimage.png?alt=media&#x26;token=cb9da944-9805-4c38-97e0-efba8a349e7e" alt=""><figcaption></figcaption></figure>

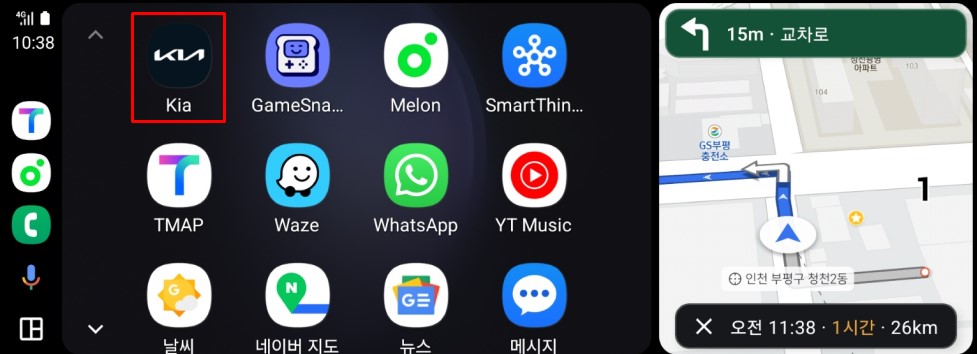

<mark style="color:blue;">**STEP02**</mark> Tap the car maker icon

<figure><img src="https://content.gitbook.com/content/ltj4dqei7bYdDyXBzPEs/blobs/MxmTW1X7xDupM40okSsB/hu_aa_apps_mark%20home.jpg" alt=""><figcaption></figcaption></figure>

### 2-1 Switching to DeX mode

{% embed url="<https://youtu.be/aa2SW-MUGcE?si=RMaFIBrNIByw-FXo>" %}


---
